Racelogic’s compact yet powerful multi-constellation, multi-frequency GNSS device testing system
4 constellations
20 simultaneous signals
56 MHz bandwidth
6 bit resolution
HTML interface
API available
Record & replay more GNSS signals than ever before

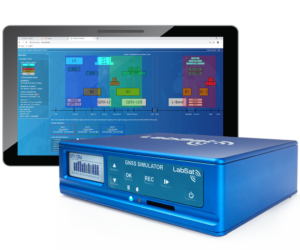

The LabSat 3 Wideband is Racelogic’s most powerful LabSat yet. Now you can record and replay more GNSS signals at much higher resolution than ever before.
With three channels, a bandwidth of up to 56 MHz and 6 bit sampling (3 bit I & 3 bit Q), LabSat 3 Wideband can handle almost any combination of constellation and signal that exists today, with plenty of spare capacity for future planned signals.
Small, battery powered and with a removable solid state disk, LabSat 3 Wideband allows you to quickly gather detailed, real world satellite data and replay these signals on your bench.
LabSat 3 Wideband can record and replay the following signals:
GPS: L1 / L2 / L5
GLONASS: L1 / L2 / L3
BeiDou: B1 / B2 / B3
QZSS: L1 / L2 / L5
Galileo: E1 / E5a / E5b / E6
IRNSS: L5
SBAS: WAAS, EGNOS, GAGAN, MSAS, SDCM
